Quick Detail
DC solar pump with plastic impeller is conveniently powered by energy from sunlight, no external batteries or electricity needed. And DC solar pump with plastic impeller has intelligent water shortage and full protection.
Product Parameter
|
Model
|
Voltage
|
Option input voltage (DC)
|
Power
|
Max flow
|
Max head
|
Outlet
|
Cable
|
Solar panel
|
|
Open circuit voltage
|
Power
|
|
2DPC1.5-35-24-200
|
24V
|
30V-48V
|
200W
|
1.5 m³/h
|
35m
|
0.75”
|
2m
|
＜50V
|
≥1.3*pump power
|
|
2DPC1.7-45-24-300
|
24V
|
30V-48V
|
300W
|
1.7m³/h
|
45m
|
0.75”
|
2m
|
＜50V
|
≥1.3*pump power
|
|
2DPC1.7-64-48-400
|
48V
|
60V-90V
|
400W
|
1.7m³/h
|
64m
|
0.75”
|
2m
|
＜50V
|
≥1.3*pump power
|

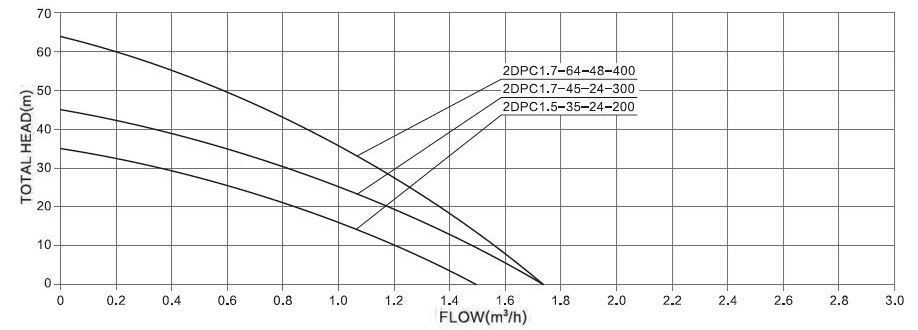

Hydraulic Performance Curves
Solar Pump Features:
- Stainless steel body , good corrosion-resistance, brass outlet, connector, oil cylinder, will not rust, simple to take in hands.
- This solar water pump is powered by sunlight, it can work automatically if here is enough bright sunlight, It doesn't need batteries or electricity.
- Smart water shortage protection: The pump stops working automatically if the well has not no water , meanwhile it will and automatically goes to work 15-30 minutes after.

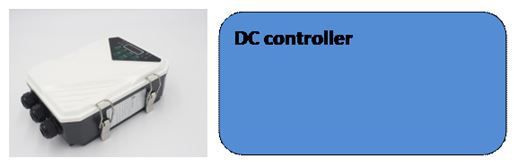

Controller Features:
● Strong waterproof : IP65, strong seal effect with waterproof , leak-proof
● Soft start technology: stable current, longer service life for the pump motor
● Low voltage/Over-current/High temperature protection

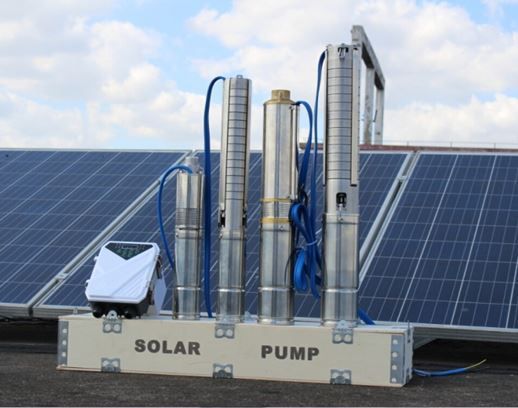

Solar pump application see below:
Production details
