Quick Detail

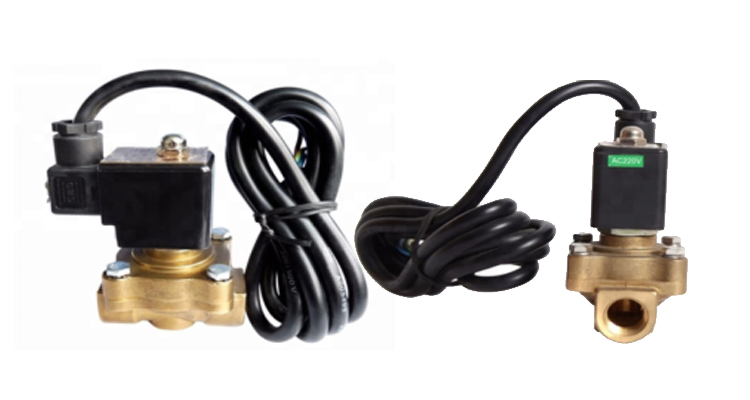

A solenoid valve is an electro mechanical device in which the solenoid uses an electric current to generate a magnetic field and thereby operate a mechanism which regulates the opening of fluid flow in a valve.


Types:
a, direct current or alternating current powered;
b, different number of ways and positions;



Common uses:
Solenoid valves are used in fluid power pneumatic and hydraulic systems, to control cylinders, fluid power motors or larger industrial valves. Automatic irrigation sprinkler systems also use solenoid valves with an automatic controller. Domestic washing machines and dishwashers use solenoid valves to control water entry into the machine. They are also often used in paintball gun triggers to actuate the CO2 hammer valve. Solenoid valves are usually referred to simply as "solenoids."
Solenoid valves can be used for a wide array of industrial applications, including general on-off control, calibration and test stands, pilot plant control loops, process control systems, and various original equipment manufacturer applications.

Internally piloting:

Input side
B- Diaphragm
C- Pressure chamber
D- Pressure relief passage
E- Electronic Mechanical Solenoid
F- Output side


Specifications
Precise action, reliable,long service.
2.Diaphragm of main valve has capability of anti-corrosion and resisting- 20 ℃ low temperature.
3.Special stainless steel magnetic material never rusts and generates remanent magnetism.
4.Class F loop with good insulation.
5. Anti-Explosion Class: EXD II Bt4
